Aluminum Screw Cap Carbonated Beverage Filling Machine , Energy
Drink Filling Equipment
Carbonated beverage filling machine
Applicable products: high-end aerated mineral water, aerated soda
water, cola, sprite, aerated juice
Capacity: 6000-8000 bottles/hour
Filling principle: balanced pressure filling
Applicable bottle type: 200ml-2000ml
Filling valve: According to customer needs, use equal pressure
mechanical valve/imported flow meter valve
Application:
Carbonated soda beverage filling production line is suitable for
the following types of filling:
1. Fruit juice carbonated drinks. Refers to the original juice
content not less than 2.5% of carbonated drinks;
2. Fruity carbonated drinks. Refers to the fruity edible essence as
the main flavoring agent, the original juice content is less than
2.5% of carbonated drinks;
3. Cola carbonated drinks. Refers to a carbonated beverage
containing caramel color, coke essence or a spicy or fruity flavor
similar to that of cola nuts and fruits;
4. Low calorie carbonated beverages. Refers to various types of
carbonated drinks and soda water with sweetener in place of sugar
in whole or in part, with calories less than 75kJ/100mL;
5. Other types of carbonated drinks. Refers to contains the plant
extracts or the non-fruity edible essence as the composition and
supplement the human body after the exercise lost electrolytes,
energy carbonated drinks, such as sports soda. Loss of
electrolytes, energy, etc. after exercise in carbonated drinks,
such as sports soda, etc.
Technical parameter
| Model | DGCF24-24-24-8 |
| Production capacity(500ml)(b/h) | 6000-8000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | Bottle diameter40-80; |
| Height | Height:130-280 |
| Suitable cap shape | Aluminum Screw Cap |
| Water pressure of Washing bottle(MPa) | 0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 6 |
| Dripping bottle position | 3.5 |
| Gas source pressure(Mpa) | balanced pressure |
| Gas consumption(m3/mm) | 0.4 |
| Total power | 7.57 |
| Total weight | 5500 |
| Dimension(L*W*H) | 3250*2180*2200mm |

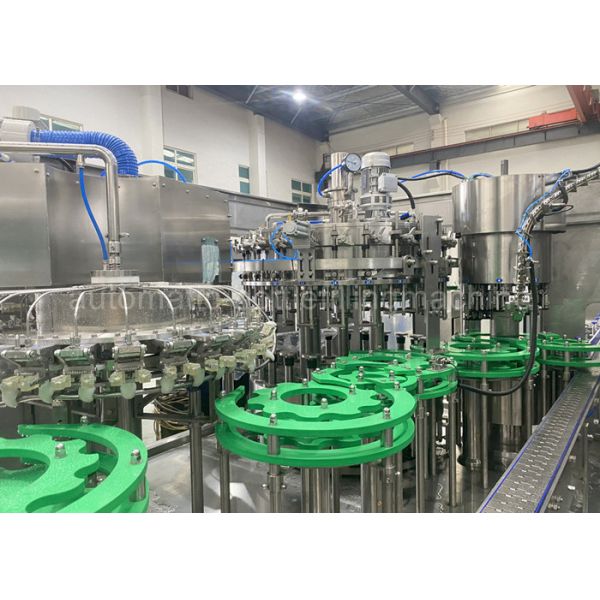

Soda bottling machine details description:
Bottle rinsing:
After the bottle enters the host machine, it enters the bottle
punching machine through the transmission star wheel. The bottle
clip clips the bottle mouth and turns it 180° upward along the
bottle rail, making the bottle mouth downward. In the specific area
of the bottle rinsing machine (determined by the water distributor
-- the bottle rinsing water is pumped into the water distributor by
the bottle rinsing pump, and then distributed to the bottle rinsing
clamp by the water distributor through 8 pipelines), sterile water
is sprayed from the bottle rinsing nozzle to flush the inner wall
of the bottle.
Bottle filling:
Using high precision, high speed quantitative filling valve, liquid
level accurate without liquid loss, to ensure good filling quality.
Besides, filling system adopts the bottle-feeding method with
bottom support to avoid secondary contamination of the bottle
mouth. Using the principle of equal pressure filling, filling
speed, liquid level control stability.
Capping:
Advanced cap-tightener structure: magnetic force is used in
cap-tightener. Torque is adjusted in line with various caps, which
is suitable for all kinds of plastic caps. Tooth profile device is
used in choosing caps. Checking device is set at the bottom slide.
We guarantee no inverse caps, and no bottle no caps.
