SS304 Automatic Bottle Filling Machine For Drinking Pure Water
Complete Line
The water filling machine can be 3 in 1 monobloc, including bottle
rinsing, filling, capping. It can also be matched with other
machines like carton packing machines, labeling machines and date
printing machine and palletizer to form one whole line.
Main Feature
1. Composition: Base, rinsing filling capping.
(P.S. : Associated equipment includies water treatment system
injection machine, bottle blowing machine,
labeling machine, shrink wrapper, palletizing machine; bottle
inkjet coder, inspection lamp, air conveyor, bottles conveyor, carton conveyor, carton ink-jet coder, changeable parts for various
bottles can be supplied.)
2. Drive Mode: Starwheel Driven (Bottles )
3. Control System: PLC
4. Rinser/ Filler/ Capper Monobloc Introduction:
a. Rinser: Rotary; Bottle grippers on starwheel and washing water
nozzles equipped; CIP system;
(Gripped bottle are turned over and mouth centred above the nozzle
spraying water into the bottle, after
which bottles are turned to original position.)

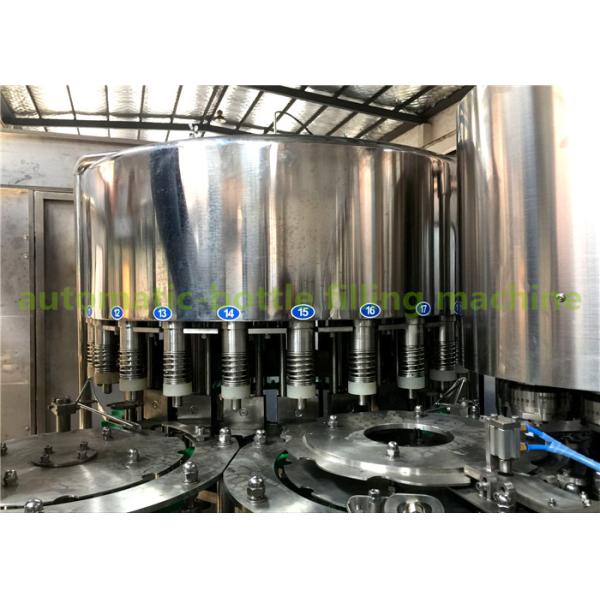

b. Filler: Removable filling valves made of food-grade stainless
steel and erode-resistant seal ring;
c. Capper: Rotary; Consists of cap hopper, cap feeder and
cam-actuating capping heads (Able to raise or lower by a follower
riding on a shaped cam).
(P.S.: For different bottles, parts of the monobloc should be
changed.)
Technical parameter
| Model | CGF24-24-8 |
| Production capacity(500ml)(b/h) | 8000-10000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | Bottle diameter40-80; |
| Height | Height:130-280 |
| Suitable cap shape | Plastic Screw Cap |
| Water pressure of Washing bottle(MPa) | 0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 6 |
| Dripping bottle position | 3.5 |
| Gas source pressure(Mpa) | normal pressure |
| Gas consumption(m3/mm) | 0.4 |
| Total power | 6.57 |
| Total weight | 5500 |
| Dimension(L*W*H) | 2750*2180*2200 |
